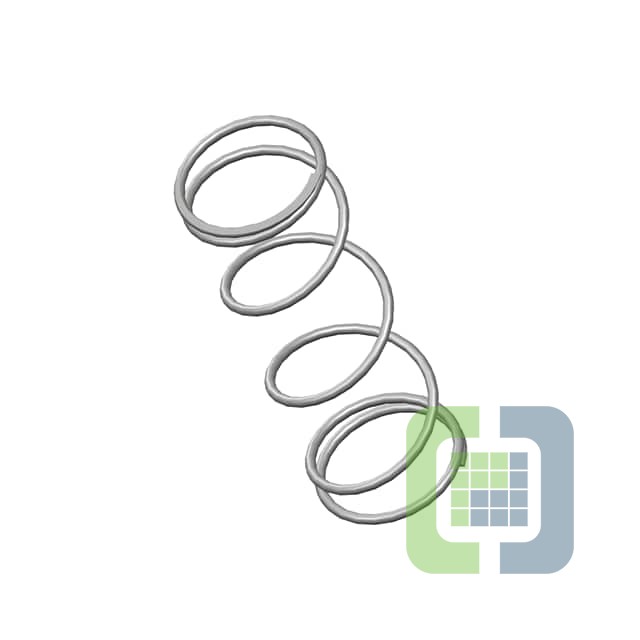

B14-16CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .296,L= .88,W= .020
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 285
Can ship immediately
Pricing:
- 1$4.31
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Music Wire
- Wire Diameter:0.020" (0.51mm)
- Diameter - Outside:0.296" (7.52mm)
- Diameter - Inside:0.256" (6.50mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.880" (22.35mm)
- Max Load:-
- Rate:2.7 lbs/in
- End Style:Closed & Ground
- Finish:None
