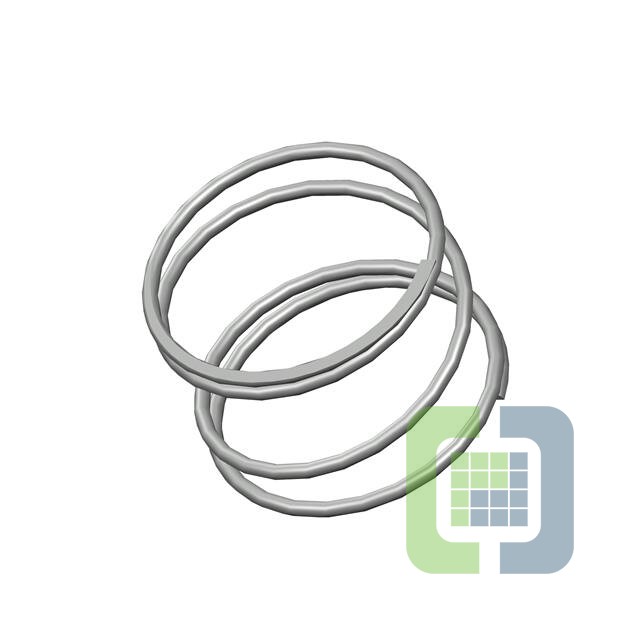

3045CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O=1.234,L= .88,W= .062
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 1,553
Can ship immediately
Pricing:
- 1$4.34
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.062" (1.57mm)
- Diameter - Outside:1.234" (31.34mm)
- Diameter - Inside:1.110" (28.19mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.880" (22.35mm)
- Max Load:-
- Rate:7.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
