A13-43CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

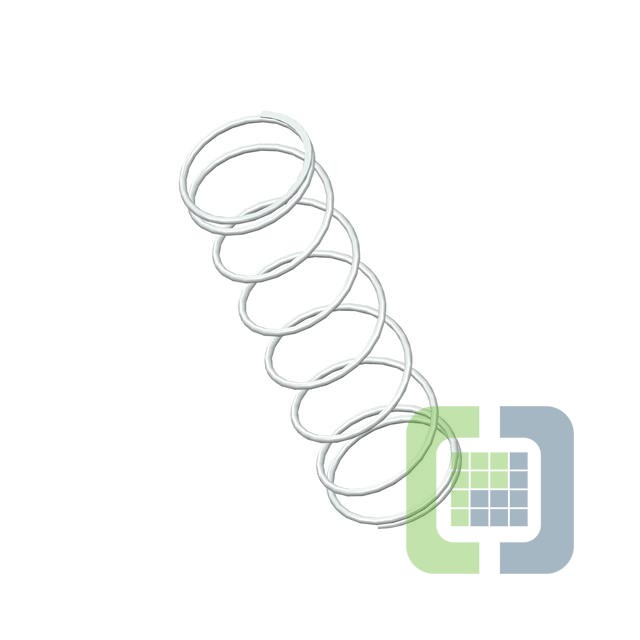

- DescriptionCOMP O= .859,L= 3.00,W= .046
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 787
Can ship immediately
Pricing:
- 1$4.35
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.046" (1.17mm)
- Diameter - Outside:0.859" (21.82mm)
- Diameter - Inside:0.767" (19.48mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:3.000" (76.20mm)
- Max Load:15.0 lbs
- Rate:1.6 lbs/in
- End Style:Closed & Ground
- Finish:None
