3858CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

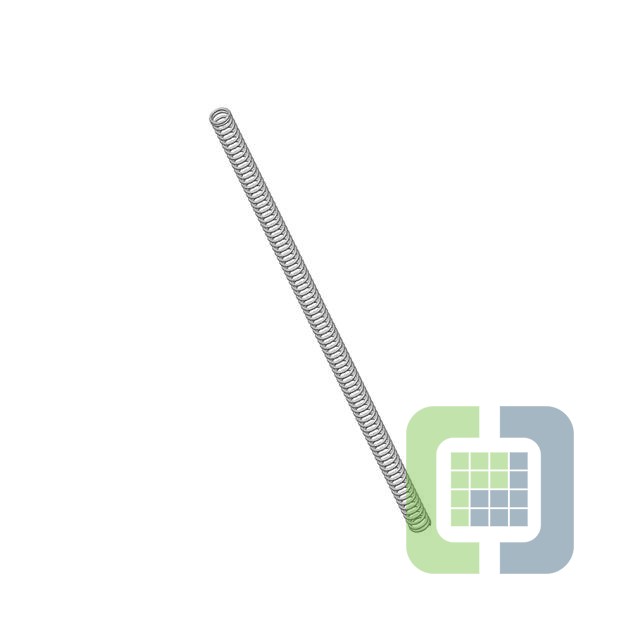

- DescriptionCOMP O= .312,L= 9.00,W= .042
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 807
Can ship immediately
Pricing:
- 1$4.39
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.042" (1.07mm)
- Diameter - Outside:0.312" (7.92mm)
- Diameter - Inside:0.228" (5.79mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:9.000" (228.60mm)
- Max Load:-
- Rate:2.7 lbs/in
- End Style:Closed
- Finish:Zinc
