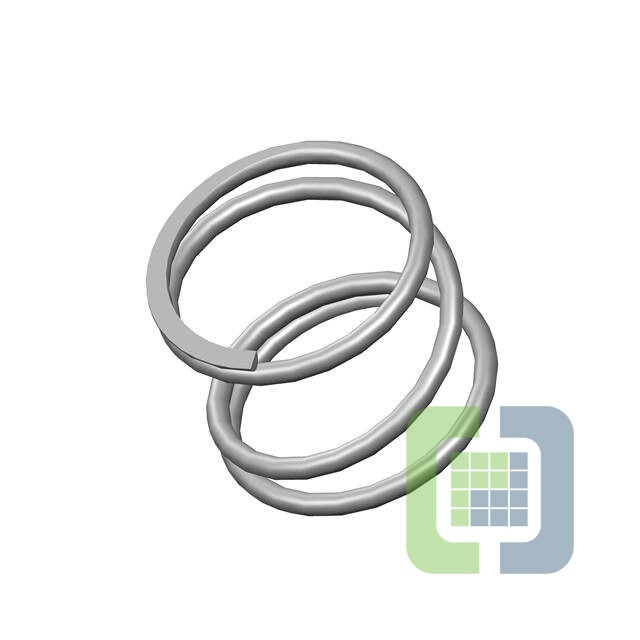

KK-80CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .718,L= .59,W= .056
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 1,112
Can ship immediately
Pricing:
- 1$4.47
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.056" (1.42mm)
- Diameter - Outside:0.718" (18.24mm)
- Diameter - Inside:0.606" (15.39mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.590" (14.99mm)
- Max Load:-
- Rate:32.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
