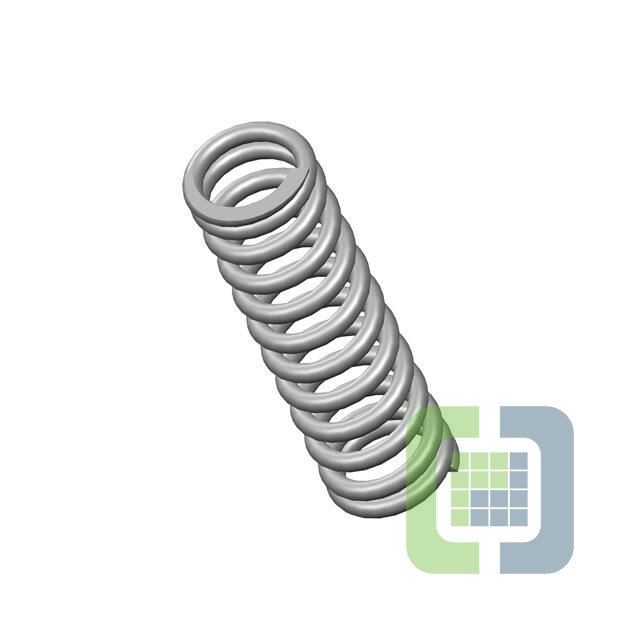

AA-1CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .203,L= .72,W= .030
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 876
Can ship immediately
Pricing:
- 1$4.48
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Music Wire
- Wire Diameter:0.030" (0.76mm)
- Diameter - Outside:0.203" (5.16mm)
- Diameter - Inside:0.143" (3.63mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.720" (18.29mm)
- Max Load:-
- Rate:22.0 lbs/in
- End Style:Closed & Ground
- Finish:None
