10381CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

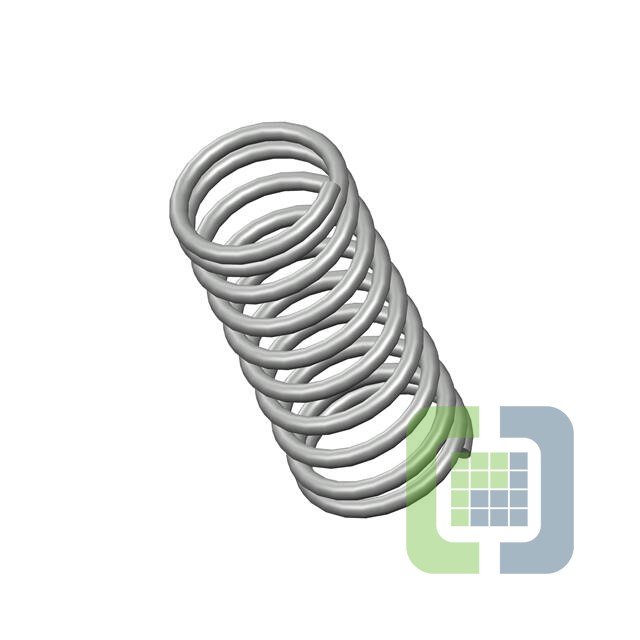

- DescriptionCOMP O=1.094,L= 2.63,W= .113
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 299
Can ship immediately
Pricing:
- 1$4.55
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.113" (2.87mm)
- Diameter - Outside:1.094" (27.79mm)
- Diameter - Inside:0.868" (22.05mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:2.630" (66.80mm)
- Max Load:-
- Rate:31.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
