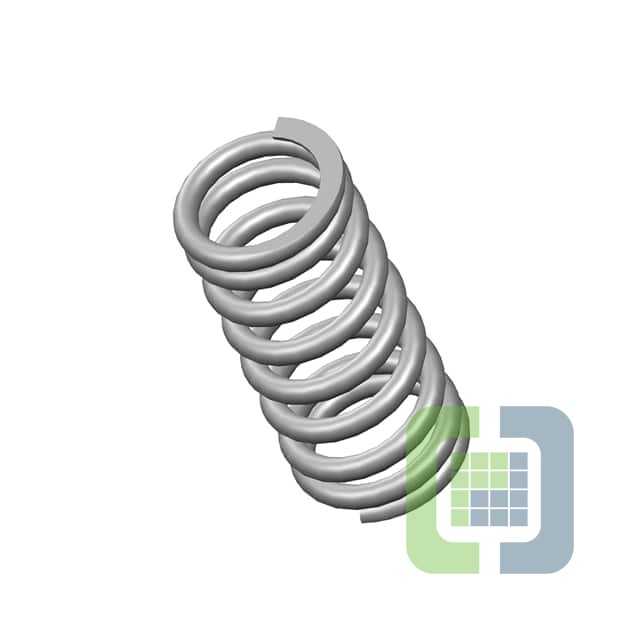

1917CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .687,L= 1.56,W= .095
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 493
Can ship immediately
Pricing:
- 1$4.63
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.095" (2.41mm)
- Diameter - Outside:0.687" (17.45mm)
- Diameter - Inside:0.497" (12.62mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.560" (39.62mm)
- Max Load:-
- Rate:87.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
