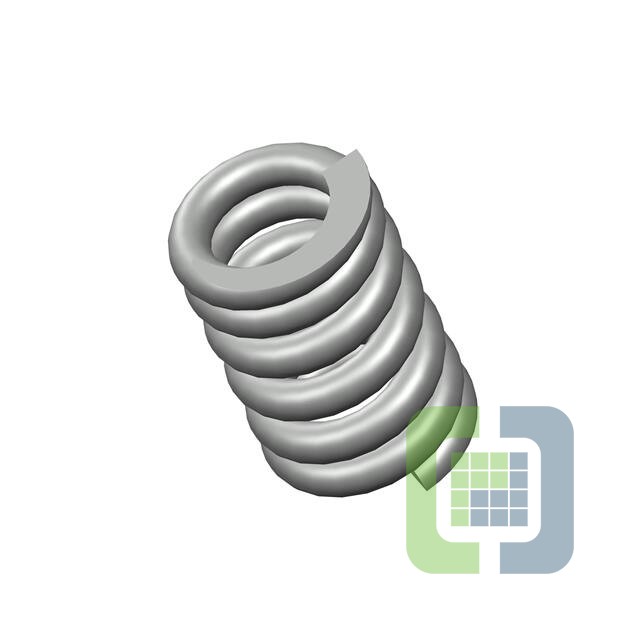

A10-46CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .703,L= 1.13,W= .138
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 912
Can ship immediately
Pricing:
- 1$4.66
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.138" (3.51mm)
- Diameter - Outside:0.703" (17.86mm)
- Diameter - Inside:0.427" (10.85mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.130" (28.70mm)
- Max Load:-
- Rate:680.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
