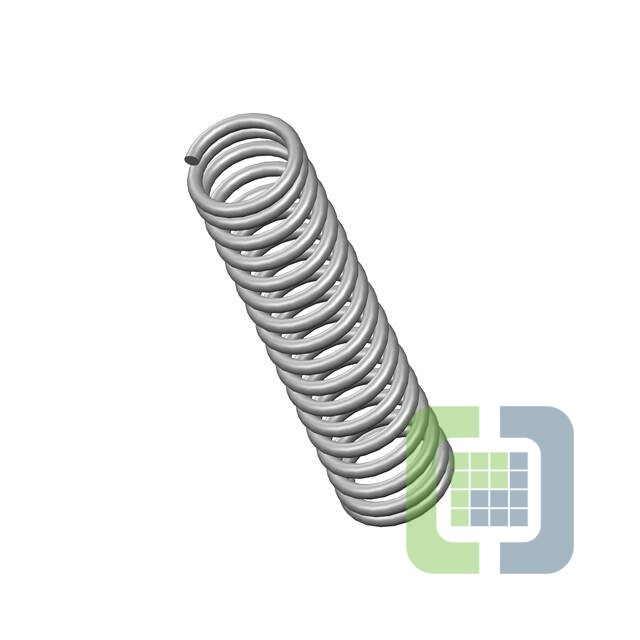

12035CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .796,L= 3.38,W= .099
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 485
Can ship immediately
Pricing:
- 1$4.73
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.099" (2.51mm)
- Diameter - Outside:0.796" (20.22mm)
- Diameter - Inside:0.598" (15.19mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:3.380" (85.85mm)
- Max Load:-
- Rate:27.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
