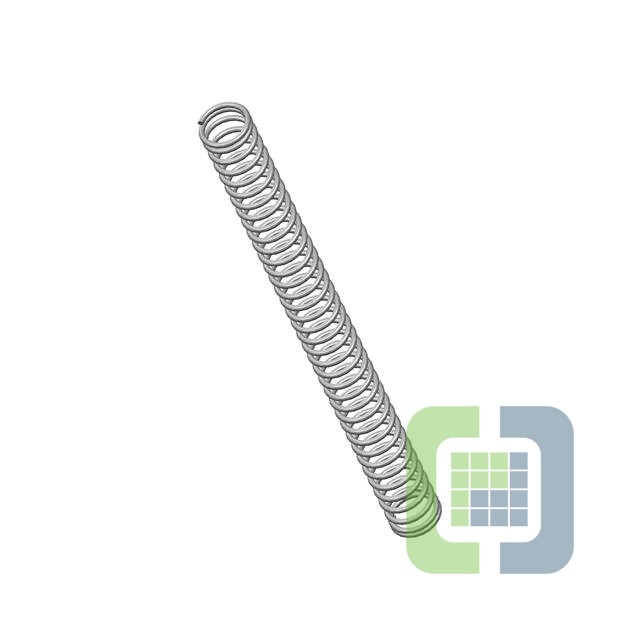

10098CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .437,L= 5.00,W= .047
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 408
Can ship immediately
Pricing:
- 1$4.74
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.047" (1.19mm)
- Diameter - Outside:0.437" (11.10mm)
- Diameter - Inside:0.343" (8.71mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:5.000" (127.00mm)
- Max Load:-
- Rate:3.4 lbs/in
- End Style:Closed
- Finish:Zinc
