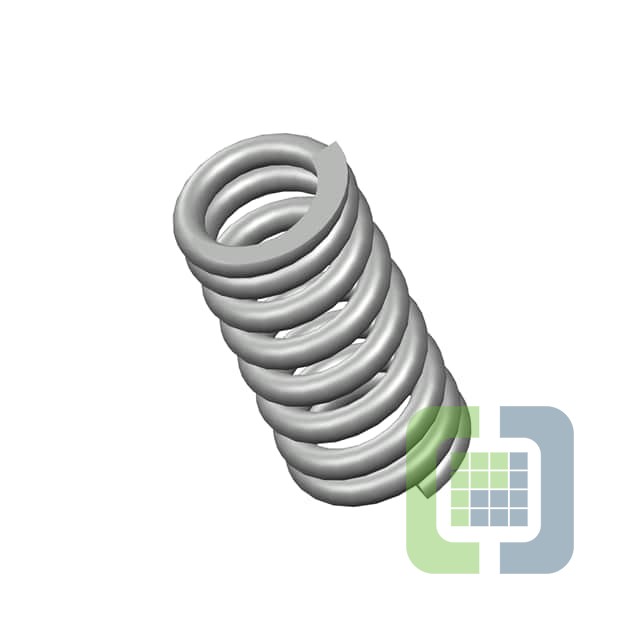

B15-4CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .219,L= .47,W= .037
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 593
Can ship immediately
Pricing:
- 1$4.78
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.037" (0.94mm)
- Diameter - Outside:0.219" (5.56mm)
- Diameter - Inside:0.145" (3.68mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.470" (11.94mm)
- Max Load:-
- Rate:72.0 lbs/in
- End Style:Closed & Ground
- Finish:None
