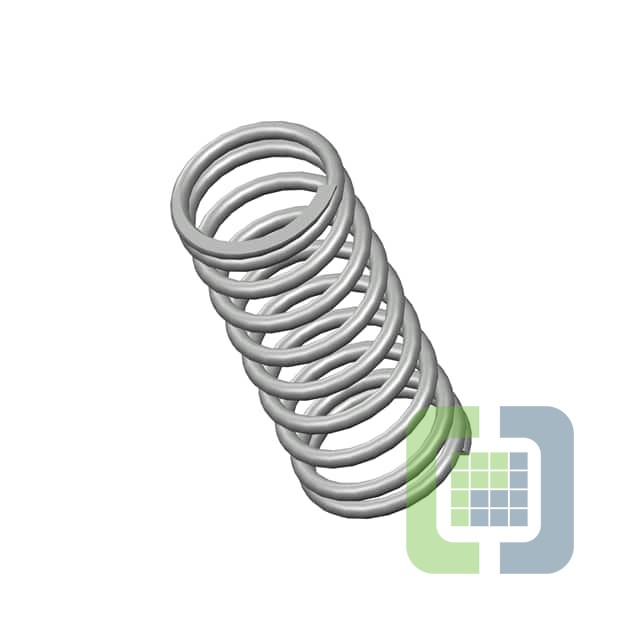

10540CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O=1.125,L= 2.72,W= .115
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 609
Can ship immediately
Pricing:
- 1$4.87
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.115" (2.92mm)
- Diameter - Outside:1.125" (28.58mm)
- Diameter - Inside:0.895" (22.73mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:2.720" (69.09mm)
- Max Load:-
- Rate:31.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
