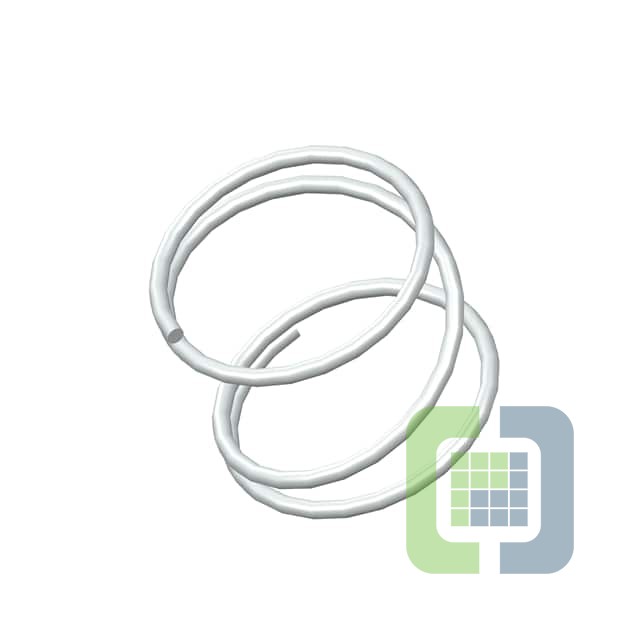

S-3177CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .875,L= .75,W= .054
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 7,018
Can ship immediately
Pricing:
- 1$4.91
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.054" (1.37mm)
- Diameter - Outside:0.875" (22.23mm)
- Diameter - Inside:0.767" (19.48mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.750" (19.05mm)
- Max Load:-
- Rate:15.0 lbs/in
- End Style:Closed & Ground
- Finish:None
