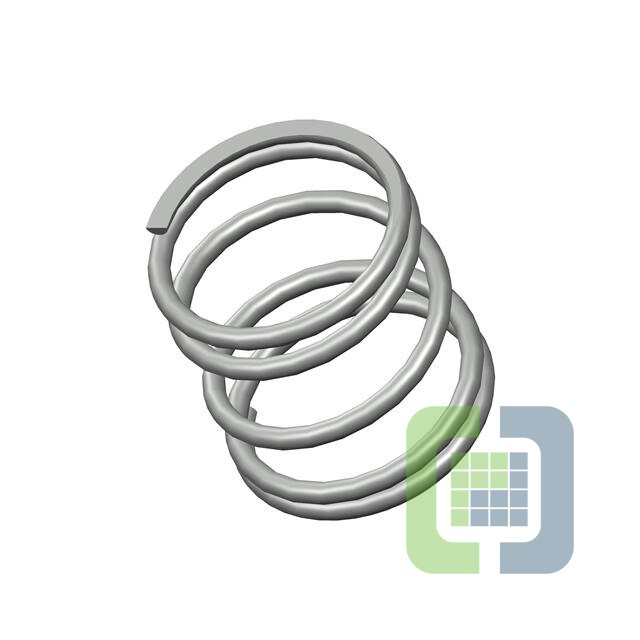

3947CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O=1.125,L= 1.19,W= .0915
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 334
Can ship immediately
Pricing:
- 1$4.94
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.092" (2.34mm)
- Diameter - Outside:1.125" (28.58mm)
- Diameter - Inside:0.941" (23.90mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.190" (30.23mm)
- Max Load:-
- Rate:31.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
