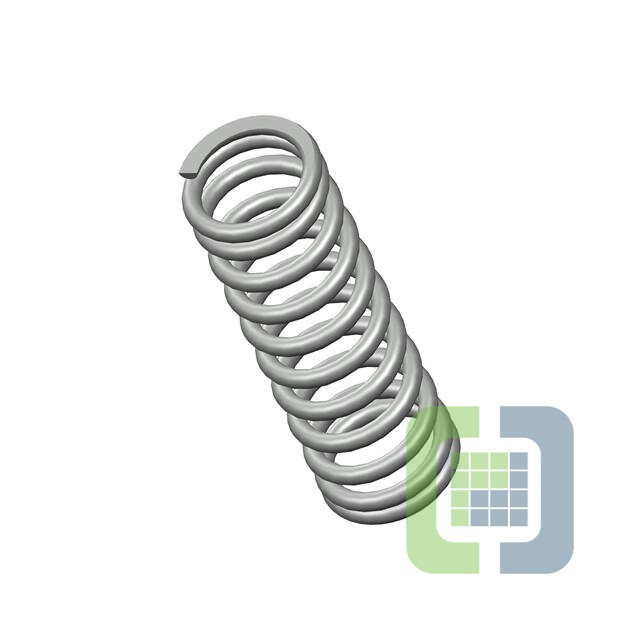

1749CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .796,L= 2.50,W= .105
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 2,174
Can ship immediately
Pricing:
- 1$5.03
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Music Wire
- Wire Diameter:0.105" (2.67mm)
- Diameter - Outside:0.796" (20.22mm)
- Diameter - Inside:0.586" (14.88mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:2.500" (63.50mm)
- Max Load:-
- Rate:59.0 lbs/in
- End Style:Closed
- Finish:Zinc
