2717CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

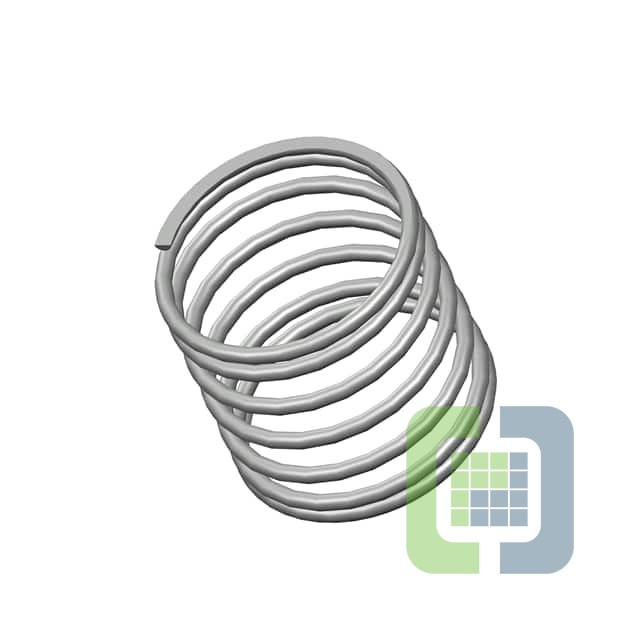

- DescriptionCOMP O=1.609,L= 1.56,W= .100
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 1,609
Can ship immediately
Pricing:
- 1$5.08
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.100" (2.54mm)
- Diameter - Outside:1.609" (40.87mm)
- Diameter - Inside:1.409" (35.79mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.560" (39.62mm)
- Max Load:-
- Rate:8.4 lbs/in
- End Style:Closed
- Finish:Zinc
