11713CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

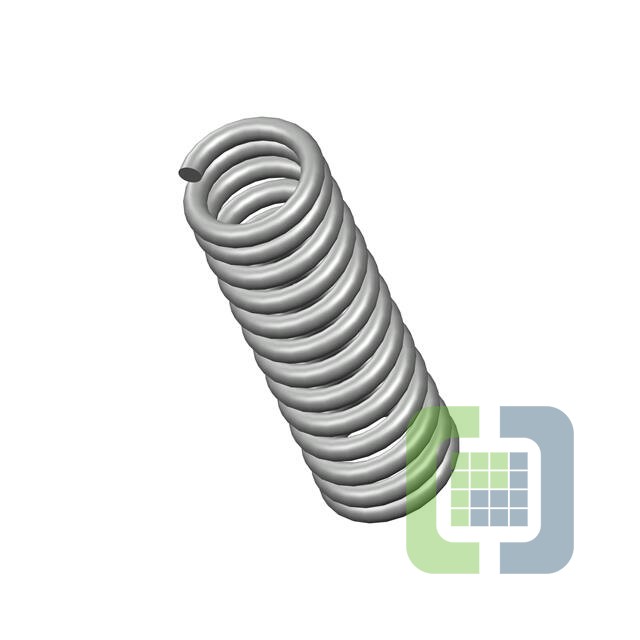

- DescriptionCOMP O= .765,L= 2.47,W= .121
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 340
Can ship immediately
Pricing:
- 1$5.14
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.121" (3.07mm)
- Diameter - Outside:0.765" (19.43mm)
- Diameter - Inside:0.523" (13.28mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:2.470" (62.74mm)
- Max Load:-
- Rate:105.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
