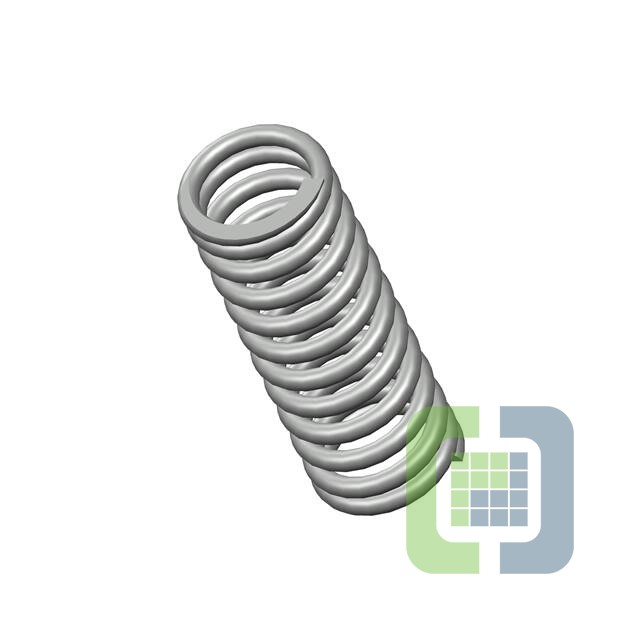

864CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .875,L= 2.50,W= .120
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 416
Can ship immediately
Pricing:
- 1$5.28
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Hard Drawn
- Wire Diameter:0.120" (3.05mm)
- Diameter - Outside:0.875" (22.23mm)
- Diameter - Inside:0.635" (16.13mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:2.500" (63.50mm)
- Max Load:-
- Rate:69.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
