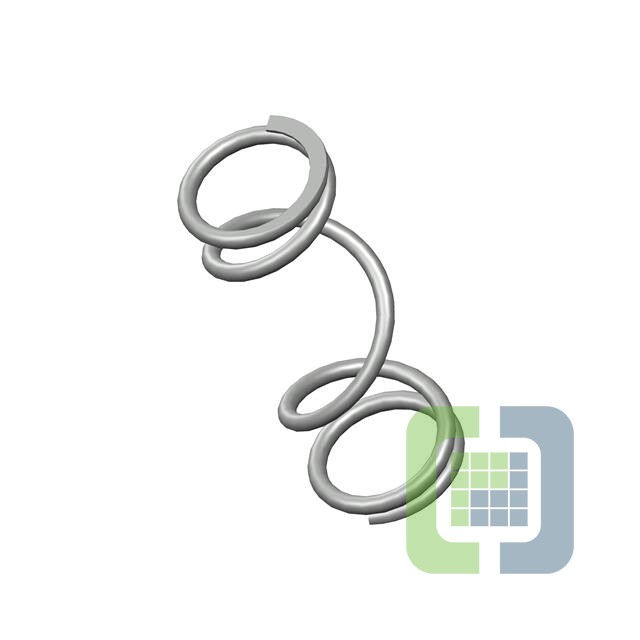

B15-18CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .188,L= .53,W= .022
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 333
Can ship immediately
Pricing:
- 1$5.29
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Music Wire
- Wire Diameter:0.022" (0.56mm)
- Diameter - Outside:0.188" (4.78mm)
- Diameter - Inside:0.144" (3.66mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.530" (13.46mm)
- Max Load:-
- Rate:29.0 lbs/in
- End Style:Closed & Ground
- Finish:Gold Iridite
