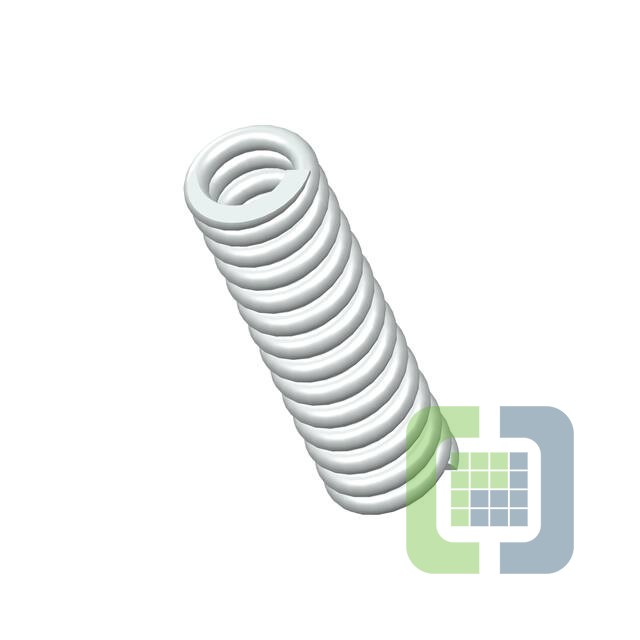

GG-19CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .109,L= .38,W= .020
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 1,149
Can ship immediately
Pricing:
- 1$5.38
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.020" (0.51mm)
- Diameter - Outside:0.109" (2.77mm)
- Diameter - Inside:0.069" (1.75mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.380" (9.65mm)
- Max Load:-
- Rate:23.0 lbs/in
- End Style:Closed & Ground
- Finish:None
