10667CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

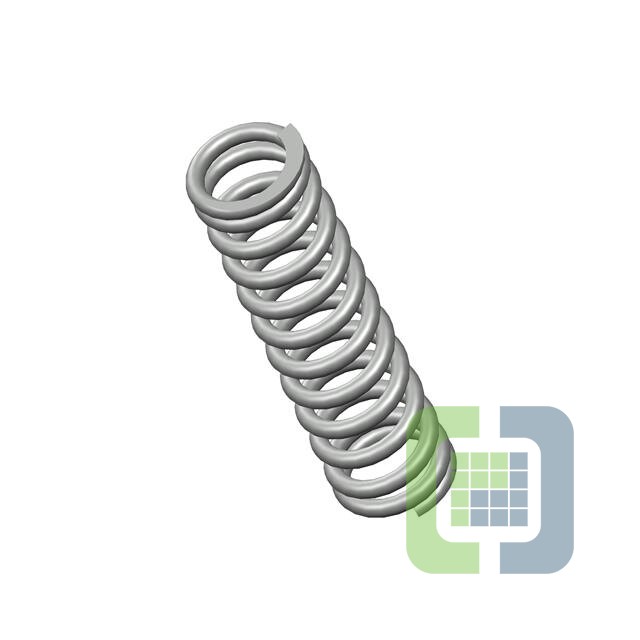

- DescriptionCOMP O= .796,L= 3.13,W= .118
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 541
Can ship immediately
Pricing:
- 1$5.41
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.118" (3.00mm)
- Diameter - Outside:0.796" (20.22mm)
- Diameter - Inside:0.560" (14.22mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:3.130" (79.50mm)
- Max Load:-
- Rate:87.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
