S-306CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

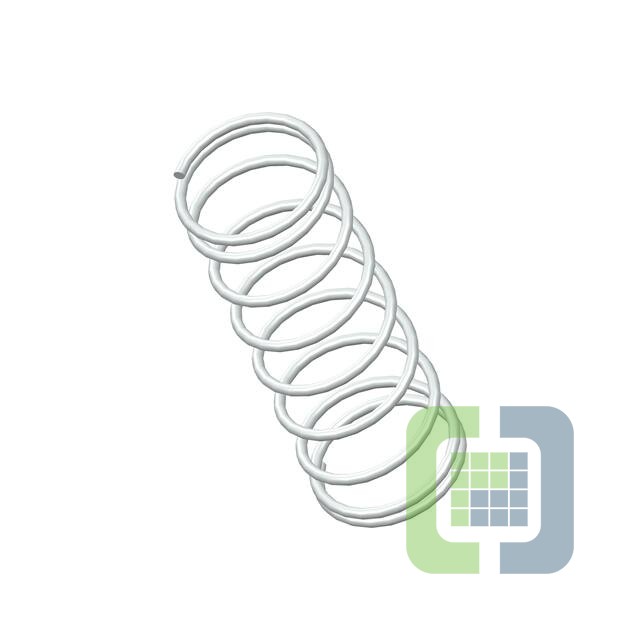

- DescriptionCOMP O=1.203,L= 3.50,W= .085
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 232
Can ship immediately
Pricing:
- 1$5.45
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.085" (2.16mm)
- Diameter - Outside:1.203" (30.56mm)
- Diameter - Inside:1.033" (26.24mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:3.500" (88.90mm)
- Max Load:-
- Rate:6.7 lbs/in
- End Style:Closed
- Finish:None
