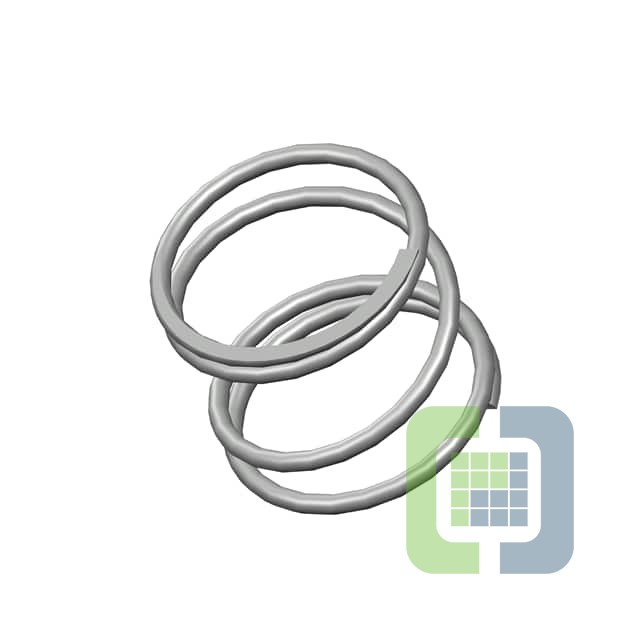

10482CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O=1.125,L= 1.00,W= .080
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 678
Can ship immediately
Pricing:
- 1$5.55
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.080" (2.03mm)
- Diameter - Outside:1.125" (28.58mm)
- Diameter - Inside:0.965" (24.51mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.000" (25.40mm)
- Max Load:-
- Rate:26.0 lbs/in
- End Style:Closed & Ground
- Finish:None
