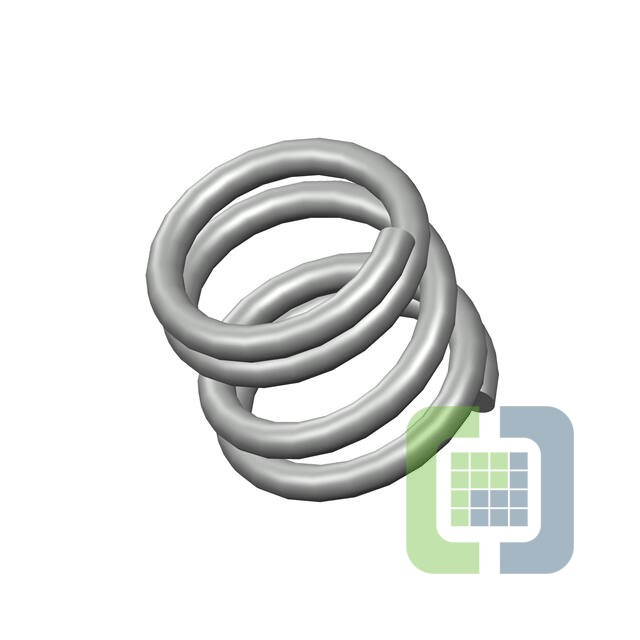

KK-85CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .859,L= .88,W= .110
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 341
Can ship immediately
Pricing:
- 1$5.58
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.110" (2.79mm)
- Diameter - Outside:0.859" (21.82mm)
- Diameter - Inside:0.639" (16.23mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.880" (22.35mm)
- Max Load:-
- Rate:250.0 lbs/in
- End Style:Closed & Ground
- Finish:None
