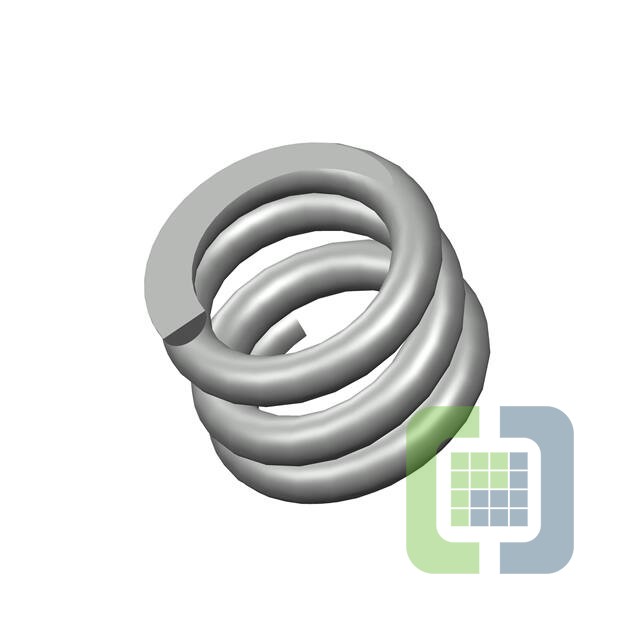

NN-24CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .953,L= .69,W= .160
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 354
Can ship immediately
Pricing:
- 1$5.74
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.160" (4.06mm)
- Diameter - Outside:0.953" (24.21mm)
- Diameter - Inside:0.633" (16.08mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.690" (17.53mm)
- Max Load:-
- Rate:1511.0 lbs/in
- End Style:Closed & Ground
- Finish:Gold Iridite
