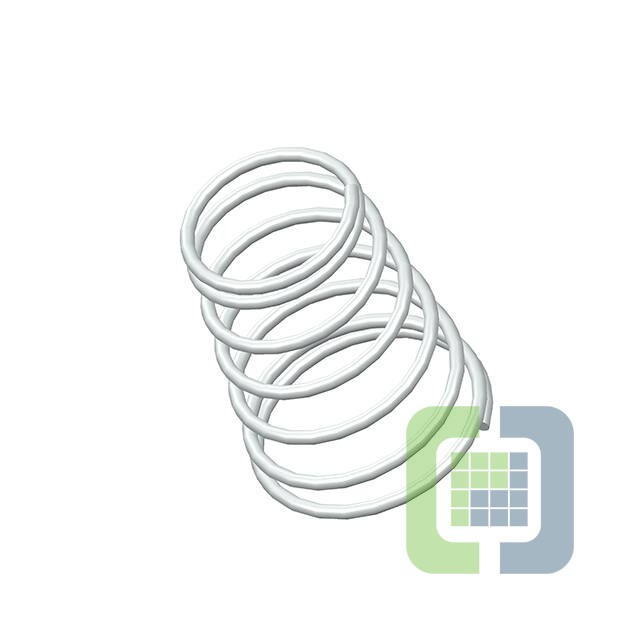

TA-2376CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionLO= 1.125, SO= 0.84, W= 0.065
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 1,071
Can ship immediately
Pricing:
- 1$6.11
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.065" (1.65mm)
- Diameter - Outside:-
- Diameter - Inside:0.710" (18.03mm)
- Diameter - Small Outside:0.840" (21.34mm)
- Diameter - Large Outside:1.125" (28.58mm)
- Free Length:1.560" (39.62mm)
- Max Load:-
- Rate:6.1 lbs/in
- End Style:Closed
- Finish:None
