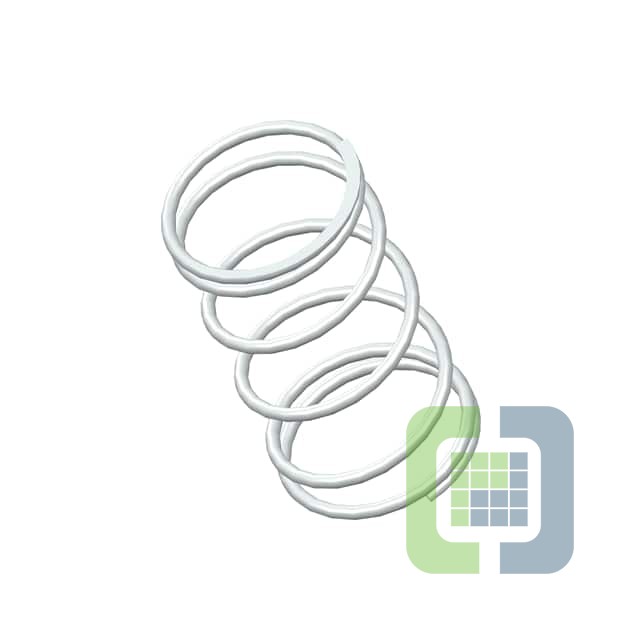

S-1234CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O=1.172,L= 2.19,W= .080
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 352
Can ship immediately
Pricing:
- 1$6.25
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.080" (2.03mm)
- Diameter - Outside:1.172" (29.77mm)
- Diameter - Inside:1.012" (25.70mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:2.190" (55.63mm)
- Max Load:-
- Rate:9.3 lbs/in
- End Style:Closed & Ground
- Finish:None
