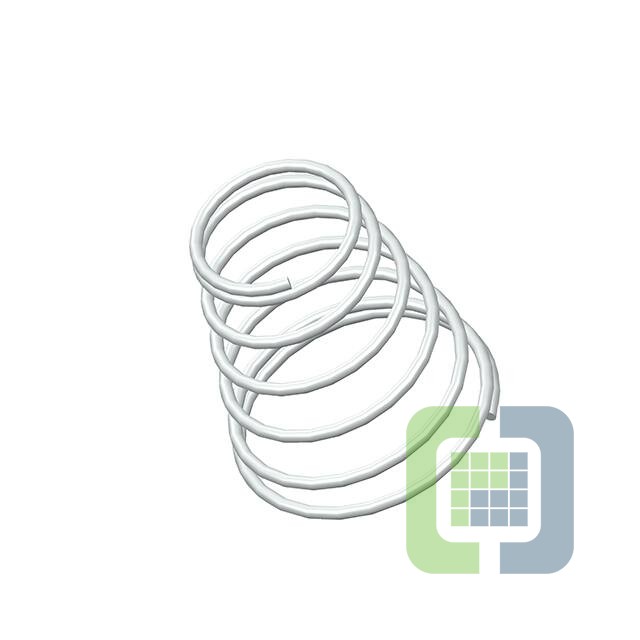

TA-2136CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionLO= 1.312, SO= 0.828, W= 0.062
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 739
Can ship immediately
Pricing:
- 1$6.46
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.062" (1.57mm)
- Diameter - Outside:-
- Diameter - Inside:0.700" (17.78mm)
- Diameter - Small Outside:0.828" (21.03mm)
- Diameter - Large Outside:1.312" (33.32mm)
- Free Length:1.500" (38.10mm)
- Max Load:-
- Rate:4.0 lbs/in
- End Style:Closed
- Finish:None
