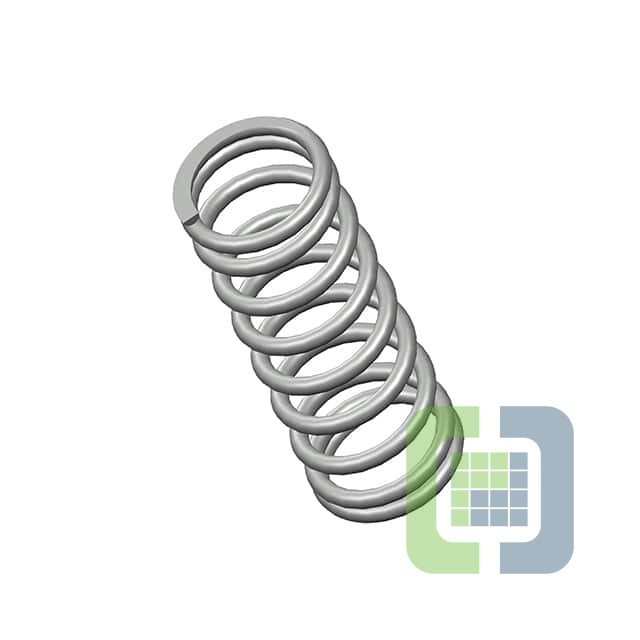

71691CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .540,L= 1.50,W= .063
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 518
Can ship immediately
Pricing:
- 1$6.51
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Music Wire
- Wire Diameter:0.063" (1.60mm)
- Diameter - Outside:0.540" (13.72mm)
- Diameter - Inside:0.414" (10.52mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.500" (38.10mm)
- Max Load:-
- Rate:29.0 lbs/in
- End Style:Closed & Ground
- Finish:None
