2824CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

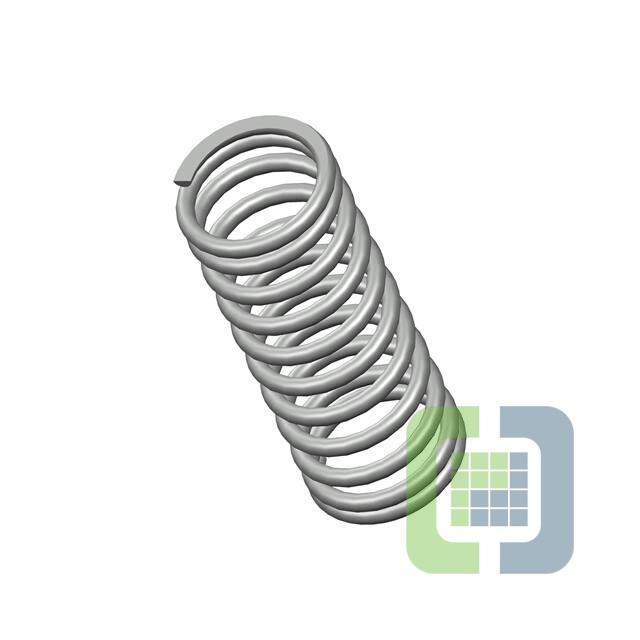

- DescriptionCOMP O=1.125,L= 2.94,W= .125
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 827
Can ship immediately
Pricing:
- 1$6.53
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Music Wire
- Wire Diameter:0.125" (3.18mm)
- Diameter - Outside:1.125" (28.58mm)
- Diameter - Inside:0.875" (22.23mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:2.940" (74.68mm)
- Max Load:-
- Rate:39.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
