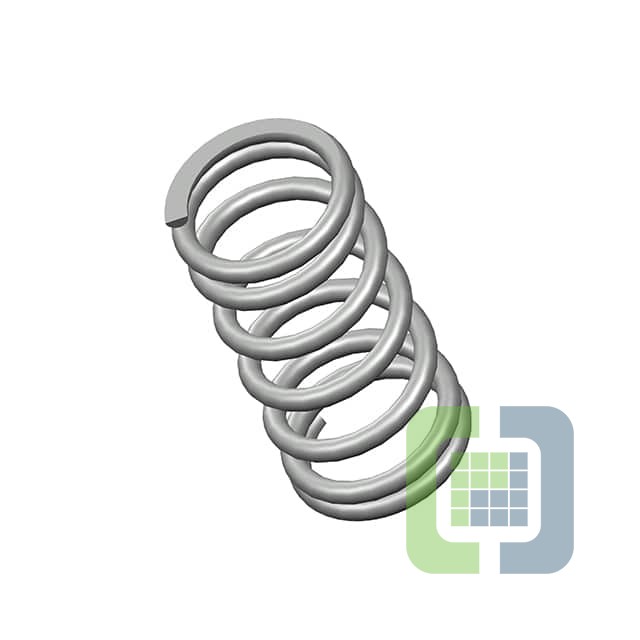

71303CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .390,L= .81,W= .047
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 417
Can ship immediately
Pricing:
- 1$6.62
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Music Wire
- Wire Diameter:0.047" (1.19mm)
- Diameter - Outside:0.390" (9.91mm)
- Diameter - Inside:0.296" (7.52mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.810" (20.57mm)
- Max Load:-
- Rate:34.0 lbs/in
- End Style:Closed & Ground
- Finish:None
