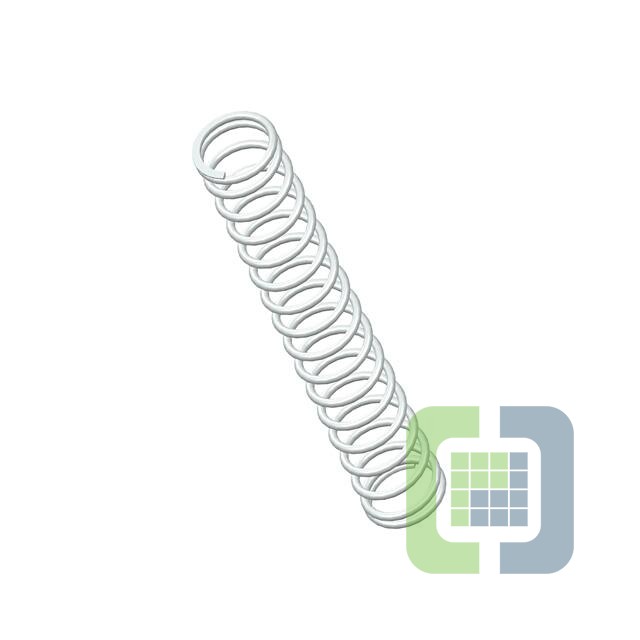

S-3013CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .703,L= 4.50,W= .070
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 585
Can ship immediately
Pricing:
- 1$6.69
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.070" (1.78mm)
- Diameter - Outside:0.703" (17.86mm)
- Diameter - Inside:0.563" (14.30mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:4.500" (114.30mm)
- Max Load:-
- Rate:7.6 lbs/in
- End Style:Closed & Ground
- Finish:None
