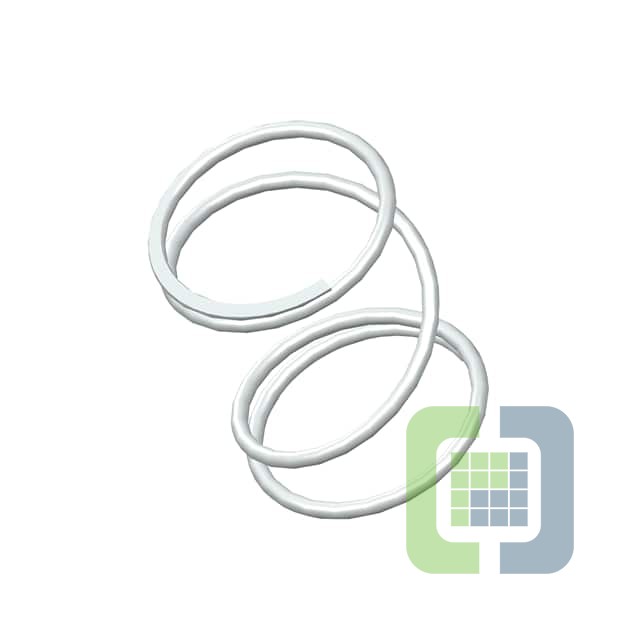

70521SCS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .240,L= .31,W= .016
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 649
Can ship immediately
Pricing:
- 1$6.75
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.016" (0.41mm)
- Diameter - Outside:0.240" (6.10mm)
- Diameter - Inside:0.208" (5.28mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.310" (7.87mm)
- Max Load:-
- Rate:4.1 lbs/in
- End Style:Closed & Ground
- Finish:None
