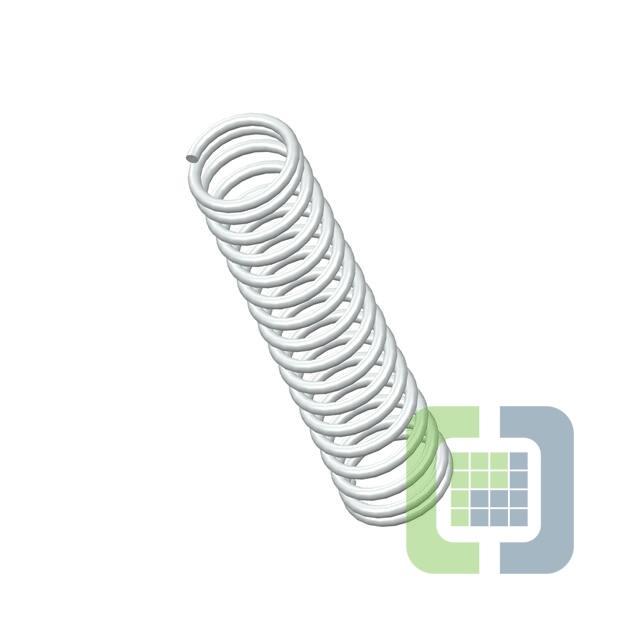

S-1136CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .843,L= 3.75,W= .092
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 334
Can ship immediately
Pricing:
- 1$6.76
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.092" (2.34mm)
- Diameter - Outside:0.843" (21.41mm)
- Diameter - Inside:0.659" (16.74mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:3.750" (95.25mm)
- Max Load:-
- Rate:14.0 lbs/in
- End Style:Closed & Ground
- Finish:None
