70654SCS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

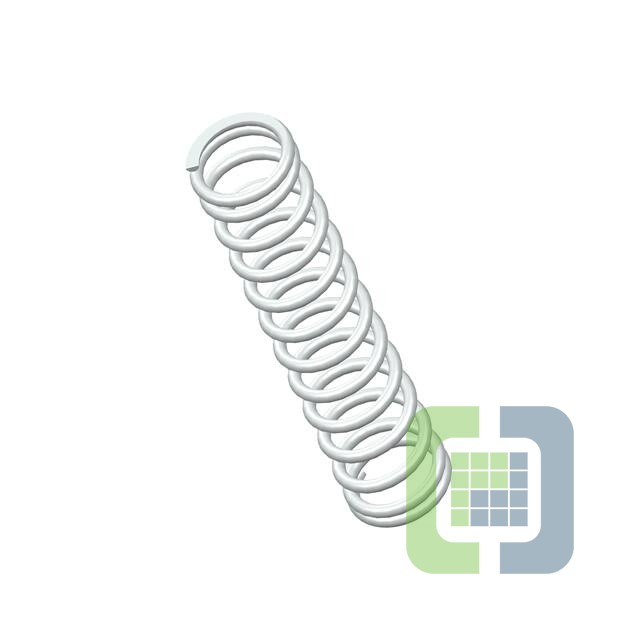

- DescriptionCOMP O= .240,L= 1.13,W= .029
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 997
Can ship immediately
Pricing:
- 1$6.79
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.029" (0.74mm)
- Diameter - Outside:0.240" (6.10mm)
- Diameter - Inside:0.182" (4.62mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.130" (28.70mm)
- Max Load:-
- Rate:8.2 lbs/in
- End Style:Closed & Ground
- Finish:None
