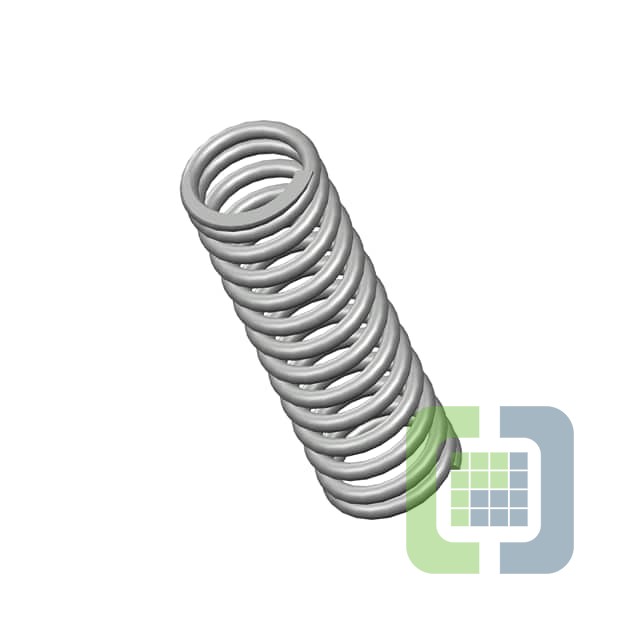

534CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O=1.156,L= 3.84,W= .148
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 402
Can ship immediately
Pricing:
- 1$6.82
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.148" (3.76mm)
- Diameter - Outside:1.156" (29.36mm)
- Diameter - Inside:0.860" (21.84mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:3.840" (97.54mm)
- Max Load:-
- Rate:56.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
