S-1201CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

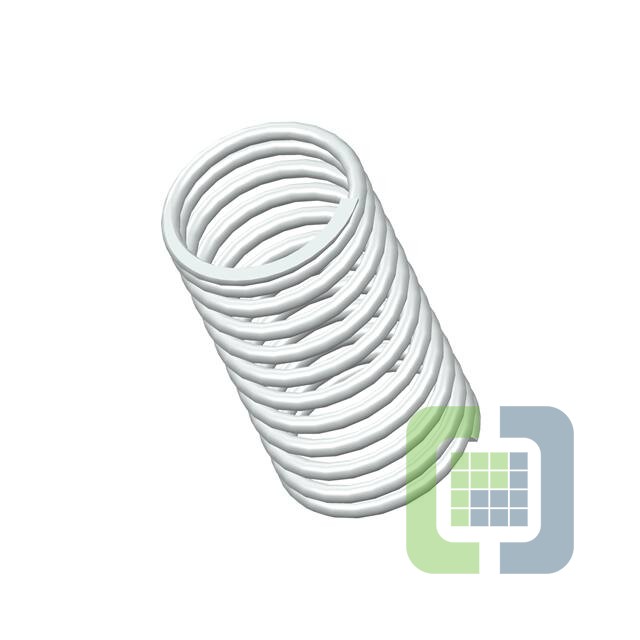

- DescriptionCOMP O= .984,L= 1.81,W= .085
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 602
Can ship immediately
Pricing:
- 1$6.84
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.085" (2.16mm)
- Diameter - Outside:0.984" (24.99mm)
- Diameter - Inside:0.814" (20.68mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.810" (45.97mm)
- Max Load:-
- Rate:9.0 lbs/in
- End Style:Closed & Ground
- Finish:None
