70721SCS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

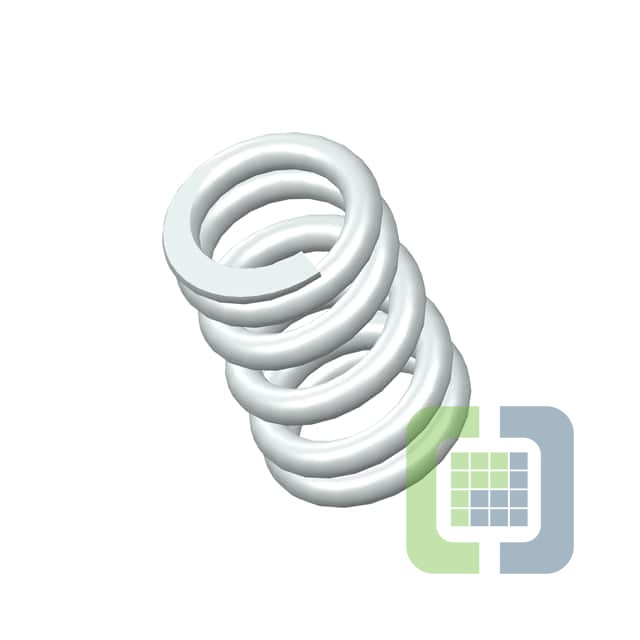

- DescriptionCOMP O= .240,L= .38,W= .040
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 632
Can ship immediately
Pricing:
- 1$6.85
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.040" (1.02mm)
- Diameter - Outside:0.240" (6.10mm)
- Diameter - Inside:0.160" (4.06mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.380" (9.65mm)
- Max Load:-
- Rate:103.0 lbs/in
- End Style:Closed & Ground
- Finish:None
