70543SCS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

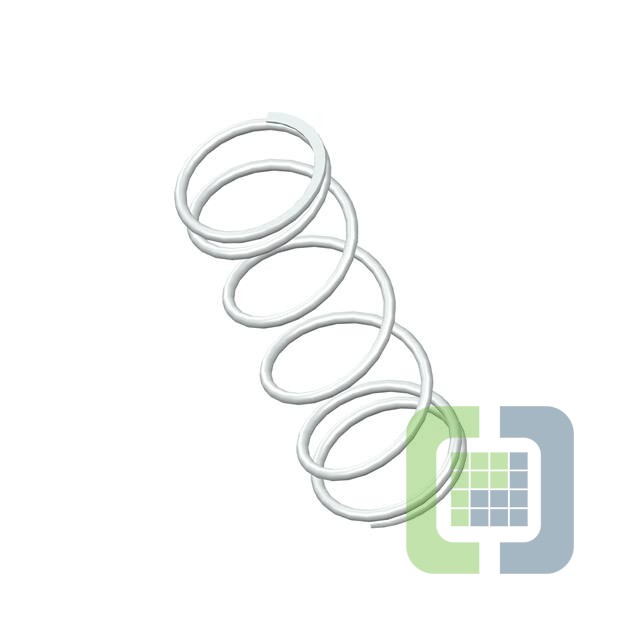

- DescriptionCOMP O= .240,L= .69,W= .018
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 695
Can ship immediately
Pricing:
- 1$6.87
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.018" (0.46mm)
- Diameter - Outside:0.240" (6.10mm)
- Diameter - Inside:0.204" (5.18mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.690" (17.53mm)
- Max Load:-
- Rate:2.6 lbs/in
- End Style:Closed & Ground
- Finish:None
