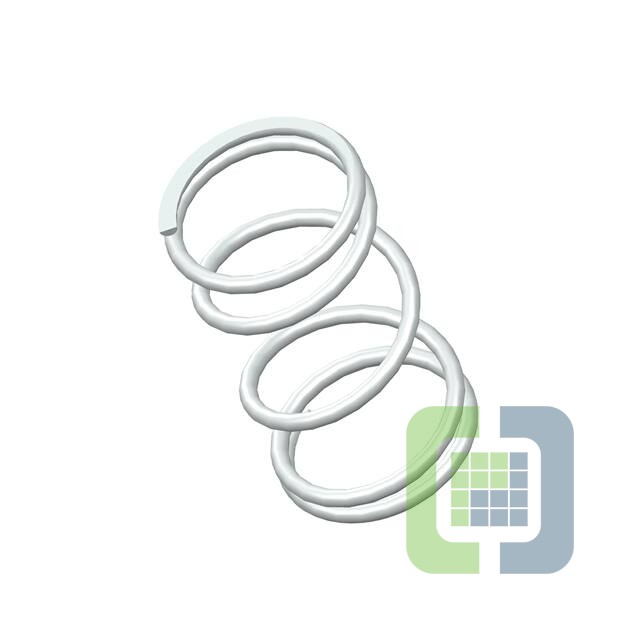

70462SCS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .210,L= .38,W= .018
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 4,775
Can ship immediately
Pricing:
- 1$6.89
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.018" (0.46mm)
- Diameter - Outside:0.210" (5.33mm)
- Diameter - Inside:0.174" (4.42mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.380" (9.65mm)
- Max Load:-
- Rate:5.8 lbs/in
- End Style:Closed & Ground
- Finish:None
