70499SCS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .210,L= .31,W= .026

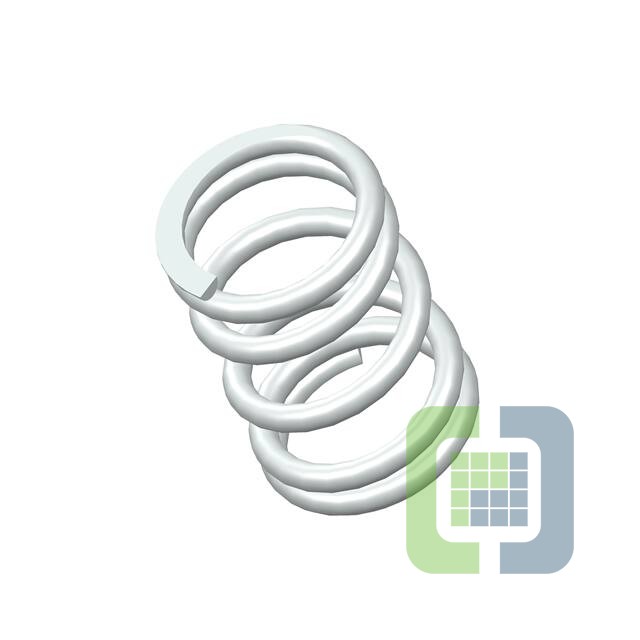

- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 563
Can ship immediately
Pricing:
- 1$6.89
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.026" (0.66mm)
- Diameter - Outside:0.210" (5.33mm)
- Diameter - Inside:0.158" (4.01mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.310" (7.87mm)
- Max Load:-
- Rate:27.0 lbs/in
- End Style:Closed & Ground
- Finish:None
