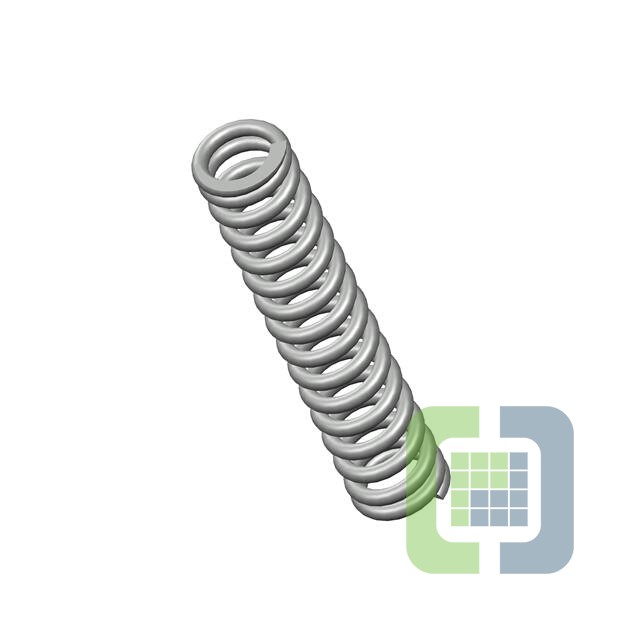

70159CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .120,L= .63,W= .020
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 2,642
Can ship immediately
Pricing:
- 1$6.91
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Music Wire
- Wire Diameter:0.020" (0.51mm)
- Diameter - Outside:0.120" (3.05mm)
- Diameter - Inside:0.080" (2.03mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.630" (16.00mm)
- Max Load:-
- Rate:16.0 lbs/in
- End Style:Closed & Ground
- Finish:None
