71731SCS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

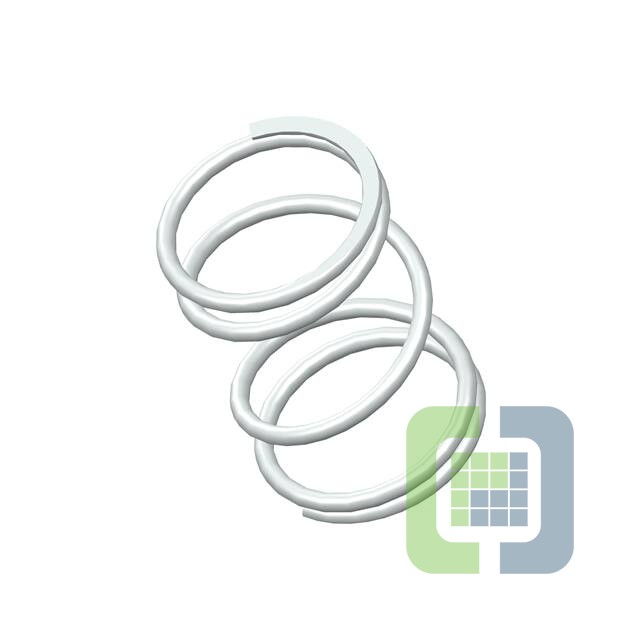

- DescriptionCOMP O= .600,L= .88,W= .049
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 300
Can ship immediately
Pricing:
- 1$6.92
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.049" (1.24mm)
- Diameter - Outside:0.600" (15.24mm)
- Diameter - Inside:0.502" (12.75mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.880" (22.35mm)
- Max Load:-
- Rate:16.0 lbs/in
- End Style:Closed & Ground
- Finish:None
