71038SCS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

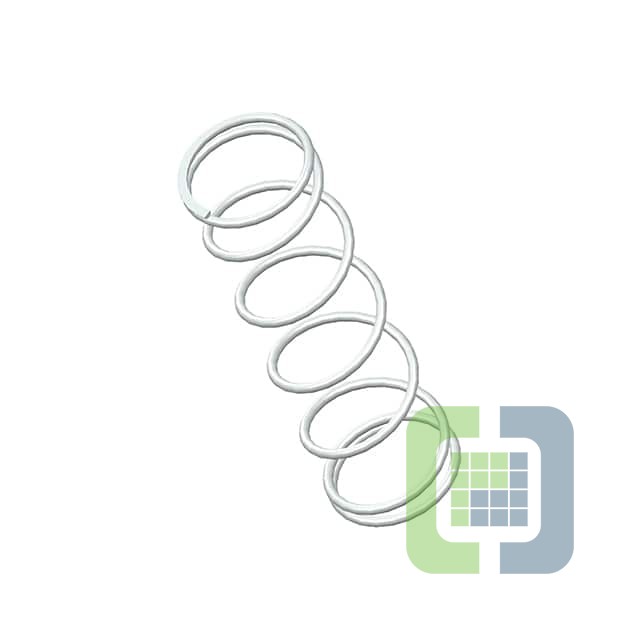

- DescriptionCOMP O= .360,L= 1.25,W= .026
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 675
Can ship immediately
Pricing:
- 1$6.96
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.026" (0.66mm)
- Diameter - Outside:0.360" (9.14mm)
- Diameter - Inside:0.308" (7.82mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.250" (31.75mm)
- Max Load:-
- Rate:2.8 lbs/in
- End Style:Closed & Ground
- Finish:None
