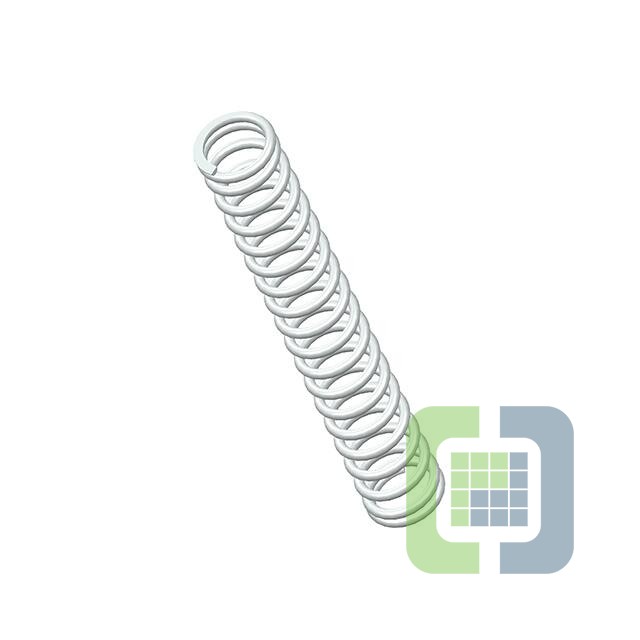

70903SCS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .300,L= 2.00,W= .038
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 439
Can ship immediately
Pricing:
- 1$7.01
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.038" (0.97mm)
- Diameter - Outside:0.300" (7.62mm)
- Diameter - Inside:0.224" (5.69mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:2.000" (50.80mm)
- Max Load:-
- Rate:8.2 lbs/in
- End Style:Closed & Ground
- Finish:None
