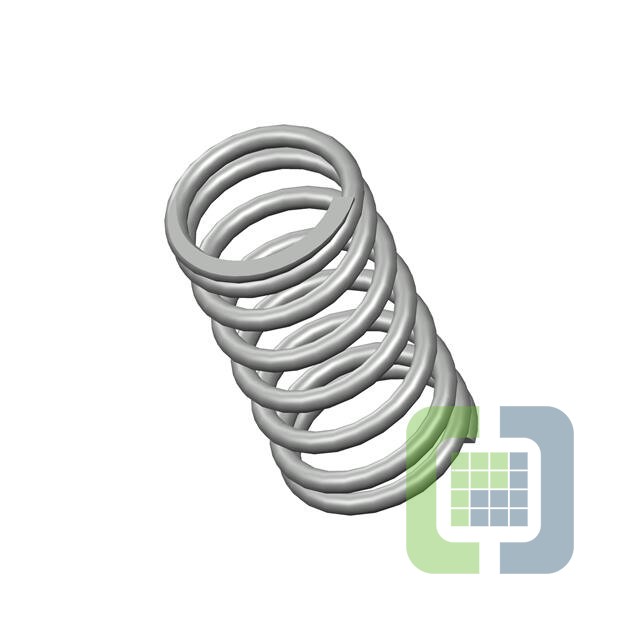

L-78CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCOMP O= .343,L= .66,W= .038
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 391
Can ship immediately
Pricing:
- 1$7.09
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.038" (0.97mm)
- Diameter - Outside:0.343" (8.71mm)
- Diameter - Inside:0.267" (6.78mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:0.660" (16.76mm)
- Max Load:-
- Rate:18.0 lbs/in
- End Style:Closed & Ground
- Finish:None
