71060SCS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

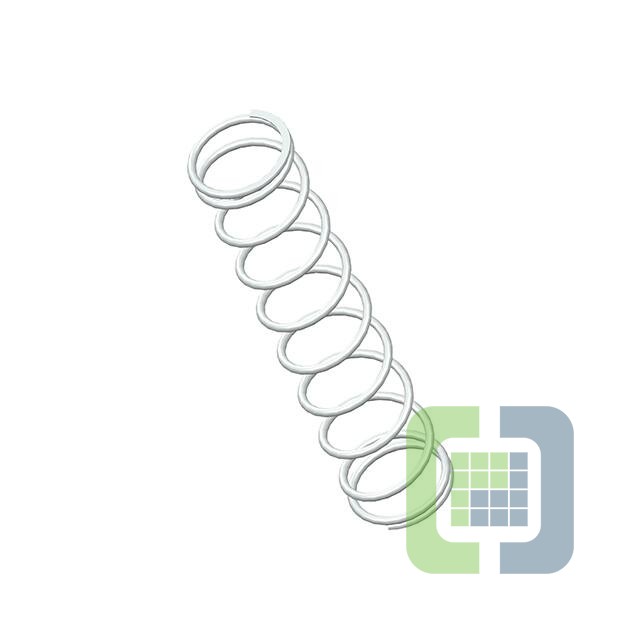

- DescriptionCOMP O= .360,L= 1.75,W= .029
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 323
Can ship immediately
Pricing:
- 1$7.1
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.029" (0.74mm)
- Diameter - Outside:0.360" (9.14mm)
- Diameter - Inside:0.302" (7.67mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.750" (44.45mm)
- Max Load:-
- Rate:2.8 lbs/in
- End Style:Closed & Ground
- Finish:None
