3344CS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

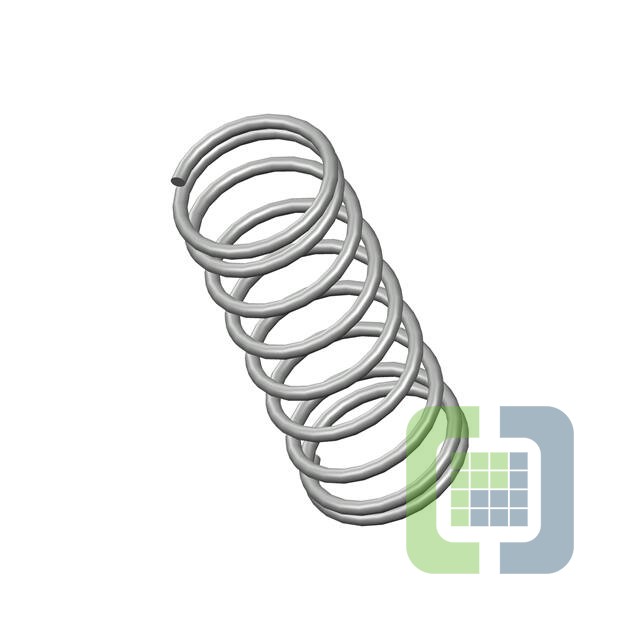

- DescriptionCOMP O=1.250,L= 3.25,W= .107
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 365
Can ship immediately
Pricing:
- 1$7.14
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Spring Steel
- Wire Diameter:0.107" (2.72mm)
- Diameter - Outside:1.250" (31.75mm)
- Diameter - Inside:1.036" (26.31mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:3.250" (82.55mm)
- Max Load:-
- Rate:18.0 lbs/in
- End Style:Closed & Ground
- Finish:Zinc
