71497SCS
Century Spring Corp.
- Lifecycle status Active
- RoHS RoHS Compliant

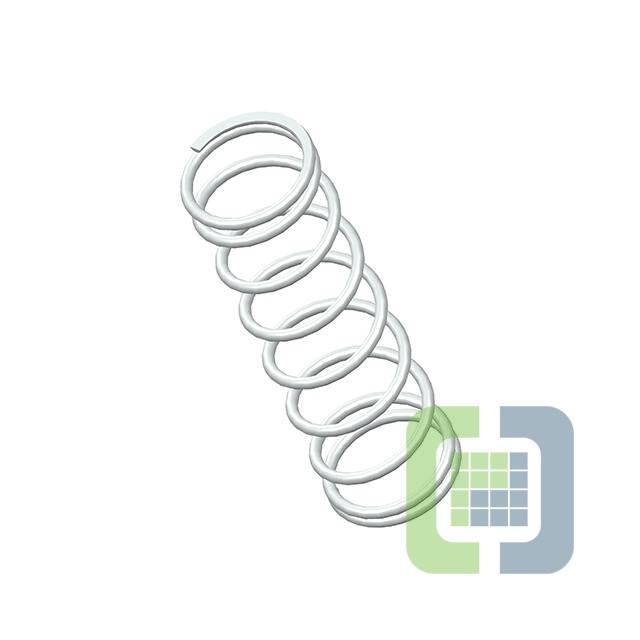

- DescriptionCOMP O= .480,L= 1.63,W= .042
- CategorySprings - Compression, Tapered
-
ECAD Model
- Share
In Stock: 841
Can ship immediately
Pricing:
- 1$7.16
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Material:Stainless Steel
- Wire Diameter:0.042" (1.07mm)
- Diameter - Outside:0.480" (12.19mm)
- Diameter - Inside:0.396" (10.06mm)
- Diameter - Small Outside:-
- Diameter - Large Outside:-
- Free Length:1.630" (41.40mm)
- Max Load:-
- Rate:6.5 lbs/in
- End Style:Closed & Ground
- Finish:None
